W90Cu10 HB>=260 Tungsten Copper Alloy CNC Precision Manufacturing Parts
Introduction of Tungsten Copper:
Tungsten copper alloy has characteristics like high plasticity and high conductivity. Our tungsten copper alloy products are processed by high purity of tungsten powder mixing with copper powder and isostatic techniques. Both tungsten copper’ s electrical and thermal conductivity are great. Moreover, it also has low expansion and high temperature resistance features.
Chemical Composition of Tungsten Copper Alloy
| Code No. | Chemical Composition % | Mechanical properties |
| CU | Impurity | W | Density | | RES( cm) | | |
| (g/cm3 ) | Hardness | Conductivity | TRS/ Mpa |
| | HB | IACS/ % | |
| | | | |
| CuW(50) | 50+2.0 | 0.5 | Balance | 11.85 | 115 | 3.2 | 54 | |
| CuW(55) | 45+2.0 | 0.5 | Balance | 12.3 | 125 | 3.5 | 49 | |
| CuW(60) | 40+2.0 | 0.5 | Balance | 12.75 | 140 | 3.7 | 47 | |
| CuW(65) | 35+2.0 | 0.5 | Balance | 13.3 | 155 | 3.9 | 44 | |
| CuW(70) | 30+2.0 | 0.5 | Balance | 13.8 | 175 | 4.1 | 42 | 790 |
| CuW(75) | 25+2.0 | 0.5 | Balance | 14.5 | 195 | 4.5 | 38 | 885 |
| CuW(80) | 20+2.0 | 0.5 | Balance | 15.15 | 220 | 5 | 34 | 980 |
| CuW(85) | 15+2.0 | 0.5 | Balance | 15.9 | 240 | 5.7 | 30 | 1080 |
| CuW(90) | 10+2.0 | 0.5 | Balance | 16.75 | 260 | 6.5 | 27 | 1160 |
Specifications of Tungsten Copper Alloy:
1) Materials: W30Cu, W50Cu, 70%W/Cu, 75%W/Cu, 80%WCu, 90%WCu
2) Density of tungsten copper:15.5~18.0g/cm3
3) Technique: infiltering process
4) Shape: Plate,sheet,strip,tube,rod,or machined parts
5) Standard:ISO 9001:2008, ASTM B702
Our strength:
-High electrical conductivity bring very good erosion rate. Improve productivity.
-High hardness maintains long life time.
-High density characters present the lowest corner wear.
-Dia. 1mm rod bend demo shows our super infiltration process control capability
Product Tags:
|
|

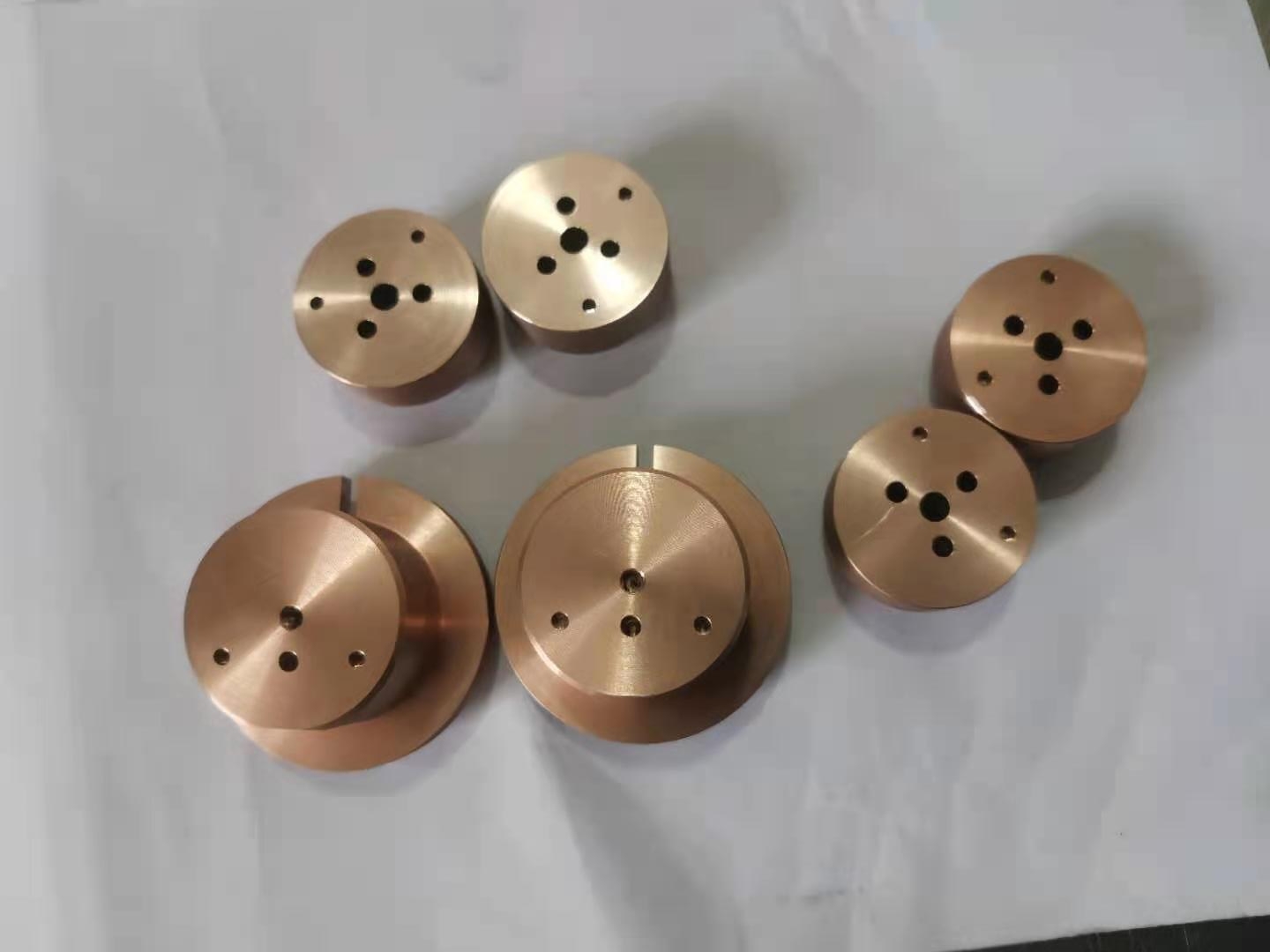

W90Cu10 HB260 Tungsten Copper Alloy CNC Precision Manufacturing Parts Images
|
